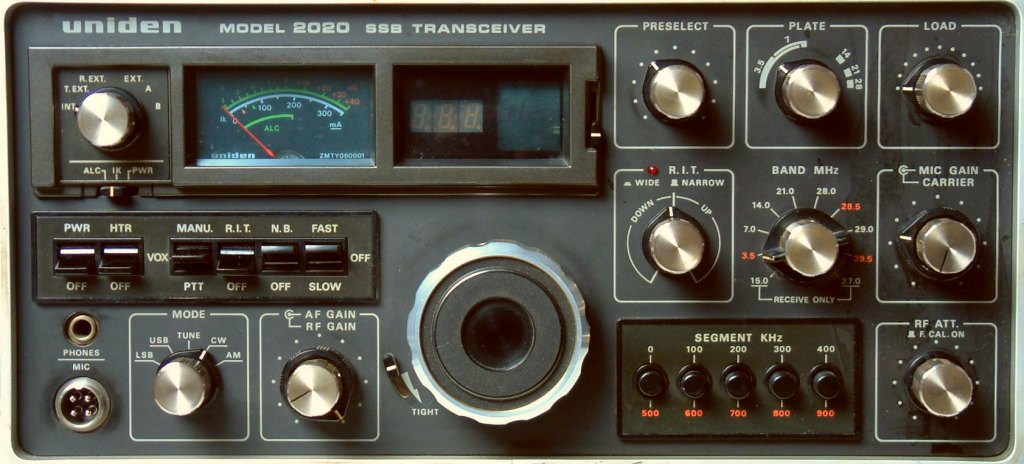

Uniden 2020
| Type: |
Amateur Transceiver |
| Frequency Range: |
TX: 10-80 m
RX: 10-80 m + 11 m and WWV 15.0 MHz |
| Mode: |
AM/SSB/CW |
| RF Power output: |
SSB/CW: 100 W
AM: 50 W |
| Sensitivity: |
SSB/CW: 0.3 uV (10 dB S/N)
AM: 1 uV (10 dB S/N) |
| Selectivity: |
AM/SSB: 2.4 KHz (-6 dB), 4 KHz (-60 dB)
CW: 600 Hz (-6 dB), 1.5 KHz (-60 dB) |
| Image rejection: |
50 dB |
| Voltage: |
13.8 VDC +/-10% or Mains |
| Current Drain: |
RX: 2 A (heater off) & 7 A (heater on)
TX: Max 22 A @ 13.8 VDC |
| Aerial Input: |
50-75 ohms, SO-239 |
| Dimensions (W*H*D): |
350*165*333 mm |
| Weight: |
18 Kg |
| Manufactured: |
19xx-19xx |
| Other: |
6146B final |
| Related Documents: |
Manual (6.4 MB)
Alignment instructions (733 KB)
Some minor modifications (15 KB) in swedish. |
|
